T-REX 3

The flagship. Twelve printheads in six rows reach 300 m²/h — and stay fast even when printing white.

3.2m
Printing width
45mm
Media thickness
300m²/h
Max speed · Level 7
12
Epson printheads
7
Colour channels
T-REX 3ET

The 2 m T-REX 3. The same printhead platform and the same speed per head count, on a shorter chassis for a floor that cannot take a 3.2 m machine.

2.0m
Printing width
45mm
Media thickness
226m²/h
Max speed · Level 7
12
Epson printheads
7
Colour channels
LDP T-REX 3ET

Photography of the 3ET is still being shot — the picture above is the T-REX ET.

T-REX XT+

The economical hybrid. Same 3.2 m width and 45 mm media capacity in a lighter, lower-power machine.

3.2m
Printing width
45mm
Media thickness
150m²/h
Max speed · Level 7
6
Epson printheads
7
Colour channels
LDP T-REX XT+

Printhead configuration

Configurations by model

T-REX 3
12 printhead arrangement
12heads
CMYKLcLmWW
6 rows · flagship configuration
6 printhead arrangement
6heads
CMYK
6 rows · CMYK
T-REX XT+
6 printhead arrangement
6heads
CMYKLcLmWW
3 rows · CMYK + Lc Lm + double white
4 printhead arrangement
4heads
CMYKLcLmWW
2 rows · CMYK + Lc Lm + double white
3 printhead arrangement
3heads
CMYK
3 rows · CMYK production setup
2 printhead arrangement
2heads
CMYKLcLmWW
1 row · CMYK + Lc Lm + double white

Systems

Industrial-grade design, high-speed performance

Printhead System

  • Latest industrial piezo printheads
  • Printhead anti-collision system
  • Anti-static device
  • Automatic media thickness measurement
  • Advanced LED-UV curing system

Carriage and Control

  • THK dual linear rail system
  • Upgraded vacuum suction system

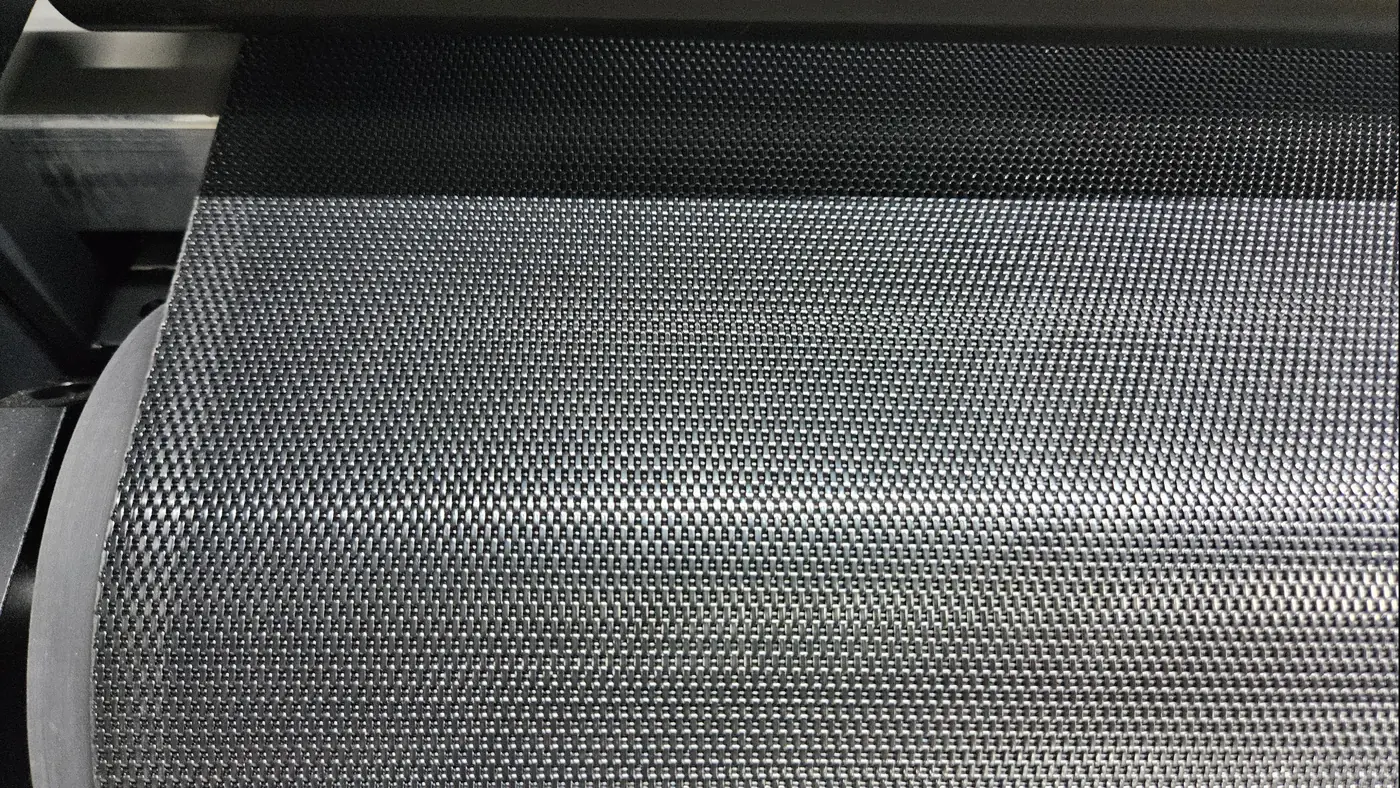

  • Teflon conveyor belt transport

Operation and Safety

  • Intuitive operation interface
  • Multiple printing effects
  • Mainstream RIP software support
  • Integrated lightbox viewing
  • Status indicator lights

Ink and Supply

  • Proprietary LED-UV curing inks
  • Light colours and white ink
  • White ink circulation system
  • Selectable series — S9 / S3 / H7

Roll media applications

CanvasBannersWallpaperFF filmsPVCPETCalendered filmsLaser filmsLeatherWindow filmsDecorative filmsMesh fabrics

Rigid media applications

WoodGlassBoardsAcrylicMetal sheetsCorrugated boardsAluminium composite panels

Optional

Extension table

An ideal option for customers printing rigid media. The extended platform installs simply and expands the printing area, effectively upgrading a roll-to-roll printer into equipment capable of flatbed output.

Working in tandem with the transport system it accommodates both rigid and flexible media — a truly hybrid printing mode on a single device.

ModelTable sizeWorking height
T-REX 32602 × 964 mm1097.5 mm, adjustable
T-REX XT+ / XT2602 × 964 mm937.5 mm, adjustable
T-REX ET1652 × 964 mm937.5 mm, adjustable
LDP extension table for rigid media
Optional extension table

Applications

What it prints

Artificial leather
Artificial leather
Billboards
Billboards
Stained glass printing
Stained glass printing

Special applications

Beyond a flat single pass

Multi-layer printing, white ink and duplex registration open effects that a single-pass colour print cannot reach. Every sample below came off an LDP machine.

5-Layer
5-Layeranimated
Day and Night
Day and Nightanimated
DuoImage
DuoImageanimated
Hi-Density
Hi-Densityanimated
W+C
W+Canimated
Sandwich
Sandwichanimated
Opaque double-sided print on transparent material
Opaque double-sided print on transparent materialanimated
Vivid colour and high saturation for backlit work
Vivid colour and high saturation for backlit workanimated
Different images with the light on and off
Different images with the light on and offanimated
Higher saturation
Higher saturation
True colour even on dark materials
True colour even on dark materials
Double-sided print on transparent material
Double-sided print on transparent material

Samples printed on LDP machines. Some effects require the matching option — double-sided registration needs the CCD duplex module.

Application examples

Printed on a T-REX

Rigid media opens product decoration that roll printing cannot reach — from phone cases and footwear to textured wall panels.

Lightbox / backlit
Lightbox / backlit
Outdoor advertising
Outdoor advertising
Posters
Posters
Wallpaper
Wallpaper
Acrylic
Acrylic
CD
CD
Flip flops
Flip flops
Leather goods
Leather goods
Member and credit cards
Member and credit cards
Painting replica
Painting replica
Phone cases
Phone cases
Shoes
Shoes
Tablet cases
Tablet cases
Textured decoration
Textured decoration
Wood decoration
Wood decoration
Ball
Ball

Specifications

T-REX 3T-REX XT+
SpecificationT-REX 3 · 6T-REX 3 · 123ET · 63ET · 12XT+ · 3XT+ · 4XT+ · 6
Machine
PrintheadEpson T3200Epson T3200Epson T3200Epson T3200Epson T3200Epson T3200Epson T3200
Head quantity612612346
Colour row6 Row (CMYK)6 Row (CMYK+LcLmWW)6 Row (CMYK)6 Row (CMYK+LcLmWW)3 Row (CMYK)2 Row (CMYK+LcLmWW)3 Row (CMYK+LcLmWW)
Max resolution726 × 1200 dpi726 × 1200 dpi726 × 1200 dpi726 × 1200 dpi726 × 1200 dpi726 × 1200 dpi726 × 1200 dpi
Printable width3200 mm3200 mm2000 mm2000 mm3200 mm3200 mm3200 mm
Media weight200 kg200 kg200 kg200 kg200 kg200 kg200 kg
Media thickness45 mm45 mm45 mm45 mm45 mm45 mm45 mm
Feeding methodConveyor beltConveyor beltConveyor beltConveyor beltConveyor beltConveyor beltConveyor belt
Dimensions and utilities
Machine weightNW 2800 / GW 3100 kgNW 2800 / GW 3100 kgNW 2800 / GW 3100 kgNW 2800 / GW 3100 kgNW 1100 / GW 1300 kgNW 1100 / GW 1300 kgNW 1100 / GW 1300 kg
Machine size (L×W×H)5800 × 1660 × 1900 mm5800 × 1660 × 1900 mm4619 × 1750 × 1532 mm4619 × 1750 × 1532 mm5218 × 1507 × 1660 mm5218 × 1507 × 1660 mm5218 × 1507 × 1660 mm
Packaging size5880 × 2800 × 1800 mm5880 × 2800 × 1800 mm5880 × 2800 × 1800 mm5880 × 2800 × 1800 mm5280 × 1150 × 1830 mm5280 × 1150 × 1830 mm5280 × 1150 × 1830 mm
Power7.7 kW AC 220V ±10% 50Hz 35A7.7 kW AC 220V ±10% 50Hz 35A7.7 kW AC 220V ±10% 50Hz 35A7.7 kW AC 220V ±10% 50Hz 35A6.5 kW AC 220V ±10% 50Hz 30A6.5 kW AC 220V ±10% 50Hz 30A6.5 kW AC 220V ±10% 50Hz 30A
Compressed air2 HP, 0.5–0.8 MPa2 HP, 0.5–0.8 MPa2 HP, 0.5–0.8 MPa2 HP, 0.5–0.8 MPa0.5 MPa0.5 MPa0.5 MPa
Curing systemWater-cooled LED-UV lampWater-cooled LED-UV lampWater-cooled LED-UV lampWater-cooled LED-UV lampWater-cooled LED-UV lampWater-cooled LED-UV lampWater-cooled LED-UV lamp
Environment20–30 °C / 35–65% RH20–30 °C / 35–65% RH20–30 °C / 35–65% RH20–30 °C / 35–65% RH20–30 °C / 35–65% RH20–30 °C / 35–65% RH20–30 °C / 35–65% RH
Consumables and control
InkH7 / S9 UV ink — 1 L · C, M, Y, KH7 / S9 UV ink — 1 L · C, M, Y, K, Lc, Lm, WH7 / S9 UV ink — 1 L · C, M, Y, KH7 / S9 UV ink — 1 L · C, M, Y, K, Lc, Lm, WH7 / S9 UV ink — 1 L · C, M, Y, K, Lc, Lm, WH7 / S9 UV ink — 1 L · C, M, Y, K, Lc, Lm, WH7 / S9 UV ink — 1 L · C, M, Y, K, Lc, Lm, W
Media typesRoll media plus acrylic board, wood board, glass, metalRoll media plus acrylic board, wood board, glass, metalRoll media plus acrylic board, wood board, glass, metalRoll media plus acrylic board, wood board, glass, metalRoll media plus acrylic board, wood board, glass, metalRoll media plus acrylic board, wood board, glass, metalRoll media plus acrylic board, wood board, glass, metal
InterfaceUSB 3.0USB 3.0USB 3.0USB 3.0USB 3.0USB 3.0USB 3.0
Operation / RIPLDP PM7 + ONYX (CALDERA)LDP PM7 + ONYX (CALDERA)LDP PM7 + ONYX (CALDERA)LDP PM7 + ONYX (CALDERA)LDP PM7 + ONYX (CALDERA)LDP PM7 + ONYX (CALDERA)LDP PM7 + ONYX (CALDERA)

Print speed — m²/h

SpecificationT-REX 3 · 6T-REX 3 · 123ET · 63ET · 12XT+ · 3XT+ · 4XT+ · 6
Level 7 · Ultra-Speed · 4 pass150 / 113300 / 226113226150 / 113100 / 75150 / 113
Level 6 · Basic · 6 pass100 / 76200 / 15076150100 / 7667 / 50100 / 76
Level 4 · Production · 6 pass67 / 50135 / 1025010267 / 5045 / 3467 / 50
Level 3 · Standard · 6 pass52 / 39104 / 78397852 / 3935 / 2652 / 39
Level 2 · Premium · 6 pass47 / 3594 / 70357047 / 3531 / 2347 / 35
Level 1 · Ultra-Fine · 6 pass42 / 3285 / 63326342 / 3228 / 2142 / 32

Each figure is m²/h at 300 cm printing width / at 150 cm — a narrow job cannot reach the wide-format number. RAPTOR P5 is measured at 500 cm / 150 cm. Hi-density and colour+white modes divide the level’s figure: hi-density and CW/WC by 2, CWC by 3, CCD duplex by 2. Figures from the LDP internal speed table, 23 February 2026; actual throughput varies with media, image content and ambient conditions.

Compare side by side ›

Gallery

T-REX in detail

T-REX XT
T-REX XT
T-REX XT+ with extension table
T-REX XT+ with extension table
From the right
From the right
Side view
Side view
Carriage and rail assembly
Carriage and rail assembly
PM7 operation interface
PM7 operation interface
Main control buttons
Main control buttons
Front service access
Front service access
Rear service access
Rear service access
