The 5-metre model prints oversized signage, outdoor advertising and banners in a single pass — no joints.

5.2m

Printing width

10mm

Media thickness

325m²/h

Max speed · 10 heads

Epson printheads

Colour channels

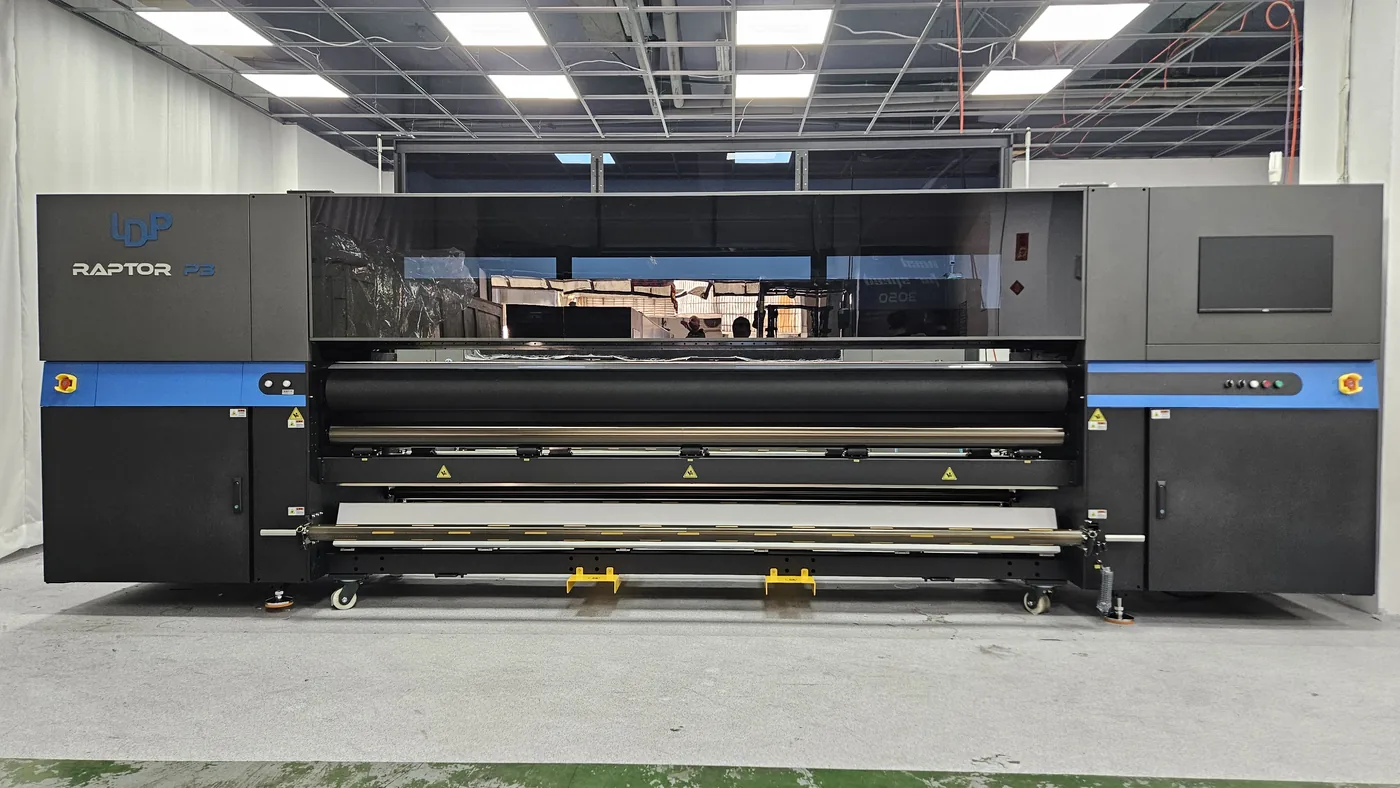

The 3.2-metre model covers the majority of signage and soft-signage production.

3.2m

Printing width

10mm

Media thickness

250m²/h

Max speed

Epson printheads

Colour channels

Printhead configuration

Match colour and speed to your business

10heads

5 rows · CMYK + Lc Lm + double white — P5 only, the fastest configuration

8heads

4 rows · CMYK + Lc Lm + double white — the full colour range

4heads

4 rows · CMYK — the most cost-effective production setup

Systems

Industrial-grade design, high-speed performance

Printhead System

Latest industrial piezo printheads
Printhead anti-collision system
Anti-static device
Automatic media thickness measurement

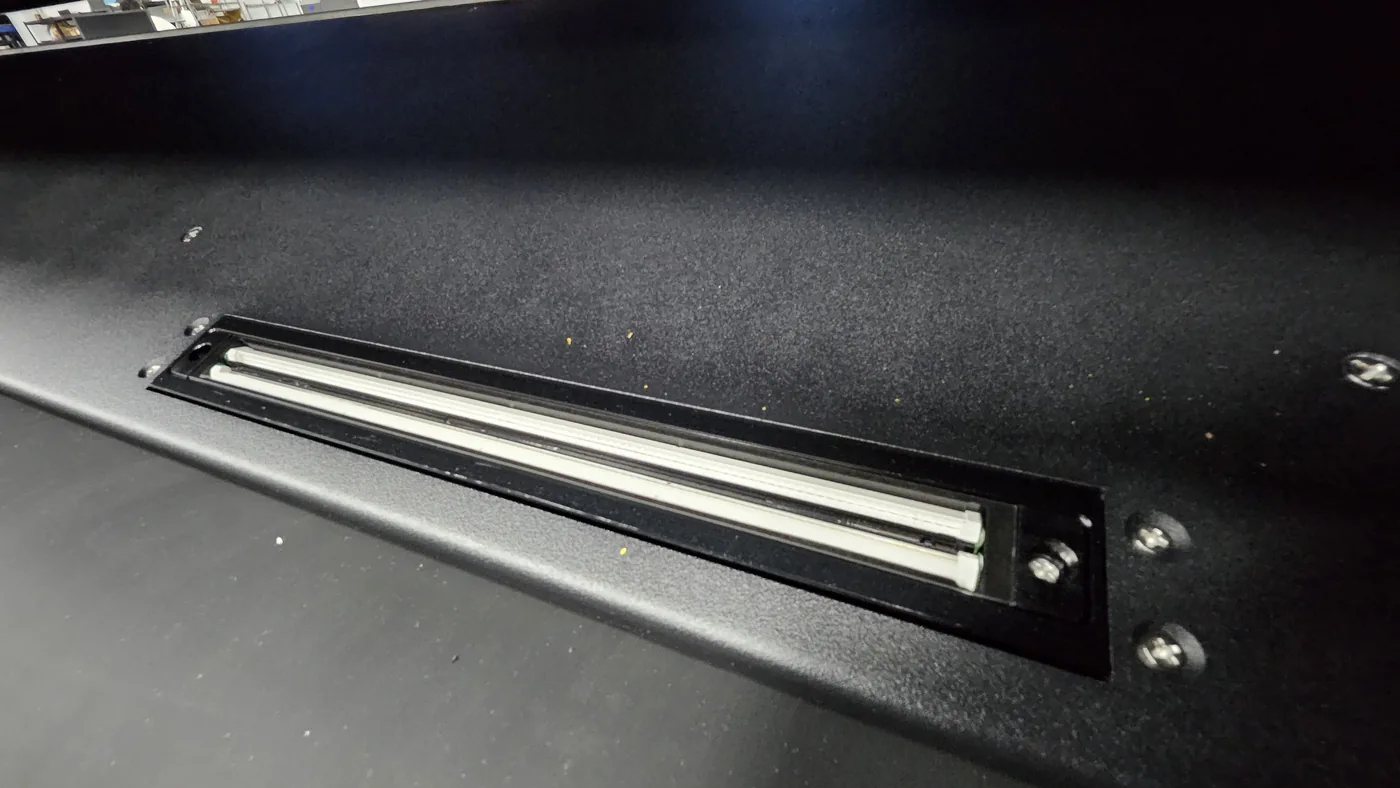

Advanced LED-UV curing system

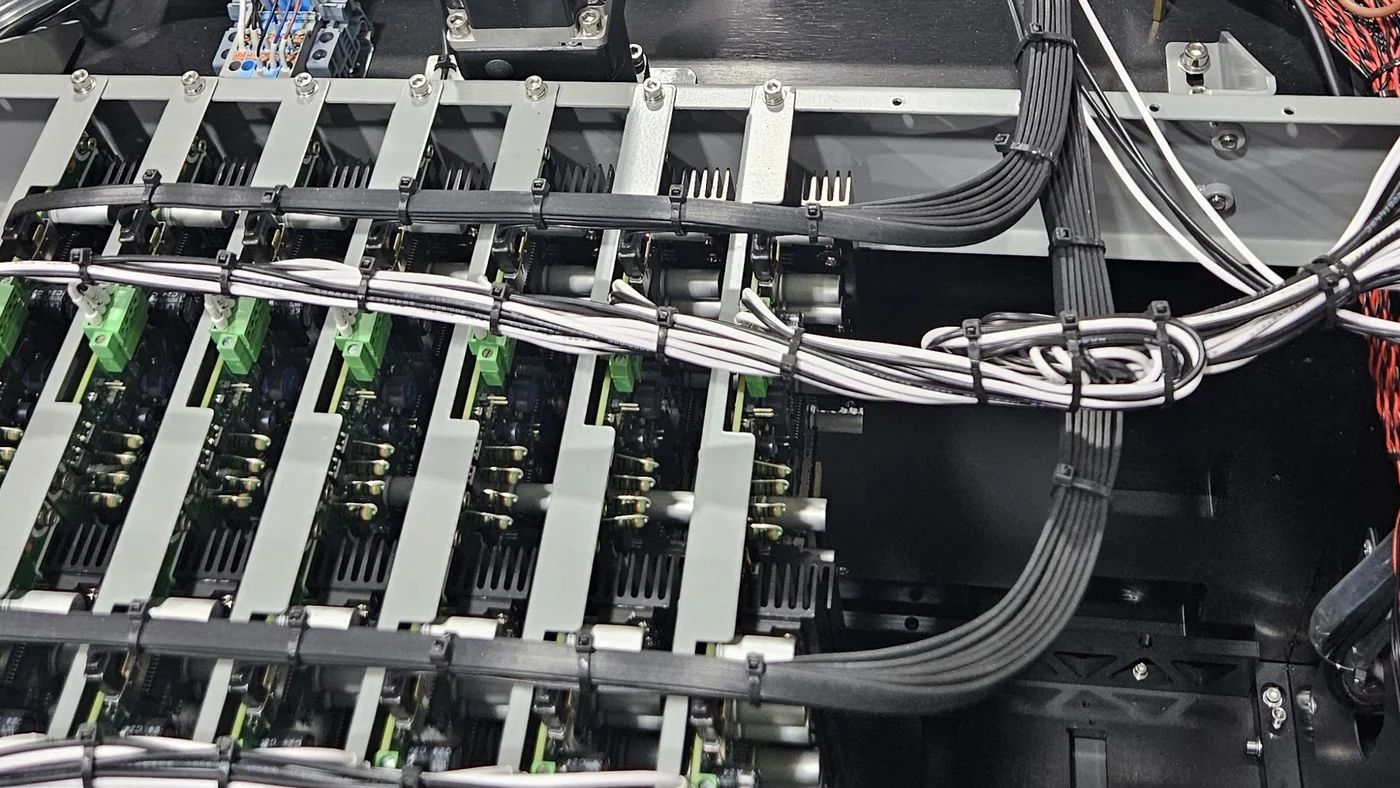

Carriage and Control

THK dual linear rail system
Upgraded vacuum suction system

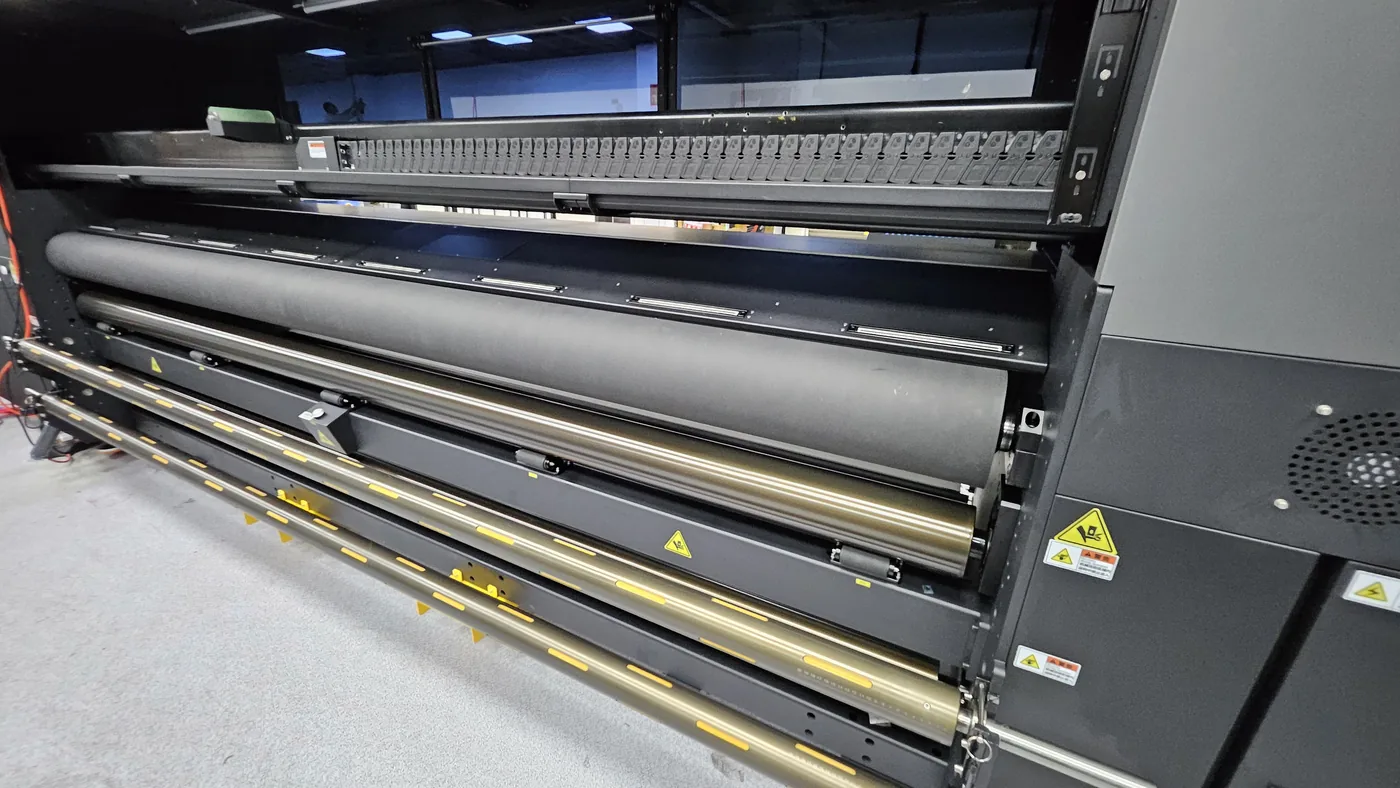

Stable rubber roller tension control

Operation and Safety

Intuitive operation interface
Multiple printing effects
Mainstream RIP software support
Integrated lightbox viewing
Status indicator lights

Ink and Supply

Proprietary LED-UV curing inks
Light colours and white ink
White ink circulation system
Selectable series — S9 / S3 / H7

Direct printing on roll media

CanvasBannersWallpaperFF filmsPVCPETCalendered filmsLaser filmsLeatherWindow filmsDecorative filmsMesh fabrics

Optional

Double-sided registration module

RAPTOR V25 can be equipped with an AI-powered high-precision duplex registration module using CCD optical sensors for real-time image correction. During reverse-side printing the system detects media displacement and instantly adjusts printhead position, holding registration accuracy within ±0.3 mm.

P3 model — 8 CCD units
P5 model — 12 CCD units
Ideal for backlit and light-blocking applications

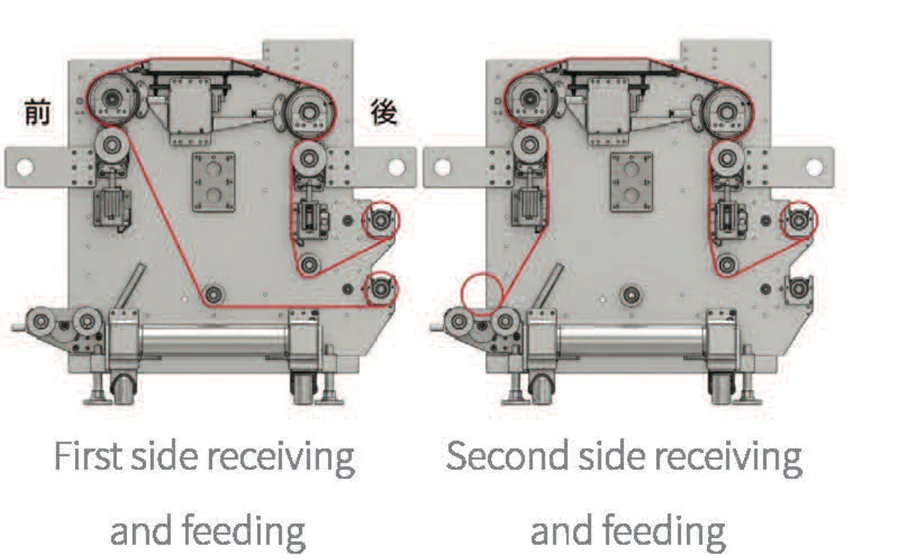

Duplex registration: first and second side receiving and feeding — First and second side receiving and feeding

Optional

Mesh fabric printing kit

Designed for customers printing backing-free mesh. The kit installs before printing and collects excess ink that seeps through the mesh or translucent substrates, preventing contamination and keeping the production environment clean.

Applications

What it prints

Special applications

Beyond a flat single pass

Multi-layer printing, white ink and duplex registration open effects that a single-pass colour print cannot reach. Every sample below came off an LDP machine.

Opaque double-sided print on transparent materialanimated

Vivid colour and high saturation for backlit workanimated

Different images with the light on and offanimated

Double-sided print on transparent material

Samples printed on LDP machines. Some effects require the matching option — double-sided registration needs the CCD duplex module.

Specifications

RAPTOR P3 V25 / P5 V25

Specification	P3 · 4 heads	P3 · 8 heads	P5 · 4 heads	P5 · 8 heads	P5 · 10 heads
Machine
Printhead	Epson T3200	Epson T3200	Epson T3200	Epson T3200	Epson T3200
Head quantity	4	8	4	8	10
Colour row	4 Row (CMYK)	4 Row (CMYK+LcLmWW)	4 Row (CMYK)	4 Row (CMYK+LcLmWW)	5 Row (CMYK+LcLmWW)
Max resolution	726 × 900 / 726 × 1200 dpi	726 × 900 / 726 × 1200 dpi	726 × 900 / 726 × 1200 dpi	726 × 900 / 726 × 1200 dpi	726 × 900 / 726 × 1200 dpi
Printable width	3200 mm	3200 mm	5200 mm	5200 mm	5200 mm
Media weight / width	150 kg / 3300 mm	150 kg / 3300 mm	250 kg / 5300 mm	250 kg / 5300 mm	250 kg / 5300 mm
Media thickness	10 mm	10 mm	10 mm	10 mm	10 mm
Feeding method	Roll to roll	Roll to roll	Roll to roll	Roll to roll	Roll to roll
Dimensions and utilities
Machine weight	NW 2800 / GW 3100 kg	NW 2800 / GW 3100 kg	NW 4300 / GW 4600 kg	NW 4300 / GW 4600 kg	NW 4300 / GW 4600 kg
Machine size (L×W×H)	5800 × 1300 × 1900 mm	5800 × 1300 × 1900 mm	7800 × 1500 × 2150 mm	7800 × 1500 × 2150 mm	7800 × 1500 × 2150 mm
Packaging size	6050 × 1600 × 2300 mm	6050 × 1600 × 2300 mm	8000 × 1800 × 2450 mm	8000 × 1800 × 2450 mm	8000 × 1800 × 2450 mm
Power	5.5 kW single phase 220V ±10% (50Hz, AC)	5.5 kW single phase 220V ±10% (50Hz, AC)	6.0 kW single phase 220V ±10% (50Hz, AC)	6.0 kW single phase 220V ±10% (50Hz, AC)	6.0 kW single phase 220V ±10% (50Hz, AC)
Curing system	Water-cooled LED-UV lamp	Water-cooled LED-UV lamp	Water-cooled LED-UV lamp	Water-cooled LED-UV lamp	Water-cooled LED-UV lamp
Environment	20–30 °C / 35–65% RH	20–30 °C / 35–65% RH	20–30 °C / 35–65% RH	20–30 °C / 35–65% RH	20–30 °C / 35–65% RH
Consumables and control
Ink	H7 / S9 UV ink	H7 / S9 UV ink	H7 / S9 UV ink	H7 / S9 UV ink	H7 / S9 UV ink
Colours	C / M / Y / K / Lc / Lm / White	C / M / Y / K / Lc / Lm / White	C / M / Y / K / Lc / Lm / White	C / M / Y / K / Lc / Lm / White	C / M / Y / K / Lc / Lm / White
Media types	Flex banner, light film, PP, PET, PVC	Flex banner, light film, PP, PET, PVC	Flex banner, light film, PP, PET, PVC	Flex banner, light film, PP, PET, PVC	Flex banner, light film, PP, PET, PVC
Interface	USB 3.0 high-speed connector	USB 3.0 high-speed connector	USB 3.0 high-speed connector	USB 3.0 high-speed connector	USB 3.0 high-speed connector
Operation / RIP	PM7 / ONYX or CALDERA	PM7 / ONYX or CALDERA	PM7 / ONYX or CALDERA	PM7 / ONYX or CALDERA	PM7 / ONYX or CALDERA

Print speed — m²/h

Specification	P3 · 4 heads	P3 · 8 heads	P5 · 4 heads	P5 · 8 heads	P5 · 10 heads
Level 7 · Ultra-Speed · 4 pass	250 / 188	250 / 188	260 / 169	260 / 169	325 / 212
Level 6 · Basic · 6 pass	168 / 126	168 / 126	173 / 113	173 / 113	216 / 141
Level 4 · Production · 6 pass	90 / 68	90 / 68	104 / 68	104 / 68	130 / 85
Level 3 · Standard · 6 pass	69 / 52	69 / 52	80 / 52	80 / 52	100 / 65
Level 2 · Premium · 6 pass	62 / 47	62 / 47	72 / 47	72 / 47	90 / 59
Level 1 · Ultra-Fine · 6 pass	56 / 42	56 / 42	65 / 42	65 / 42	81 / 53

Each figure is m²/h at 300 cm printing width / at 150 cm — a narrow job cannot reach the wide-format number. RAPTOR P5 is measured at 500 cm / 150 cm. Hi-density and colour+white modes divide the level’s figure: hi-density and CW/WC by 2, CWC by 3, CCD duplex by 2. Figures from the LDP internal speed table, 23 February 2026; actual throughput varies with media, image content and ambient conditions.
